Plastic Wear Parts for Conveyor Belts: Materials, Applications, and Buying Guide

Conveyor Belts

Where Plastic Wear Parts Are Used on Conveyor Belts

Why Plastic Outperforms Metal in Wear Applications

Best Plastic Materials for Conveyor Wear Parts

UHMWPE vs HDPE for Conveyor Wear Parts

Yellow HDPE Sheet

Seaboard HDPE (Marine Plastic)

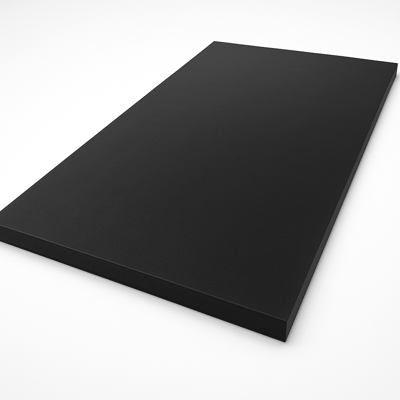

UHMWPE Sheet

HDPE Sheet

Thickness Selection: What Actually Works

Indoor vs Outdoor Conveyor Applications

Why Ordering Cut-to-Size Plastic Matters

Real-World Conveyor Applications

Final Buying Advice

Common Conveyor Wear Applications

Key Advantages of Plastic Wear Parts

UHMWPE (Ultra High Molecular Weight Polyethylene)

HDPE (High-Density Polyethylene)

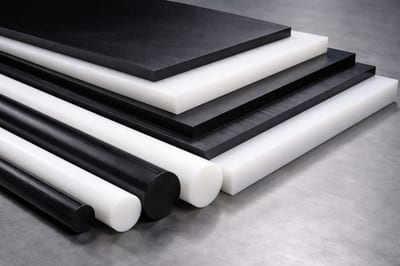

Acetal (POM)

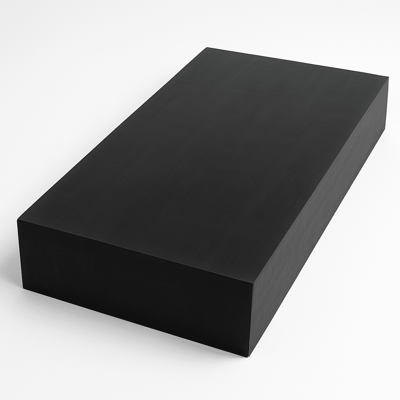

Nylon

Typical Thickness Guide

Indoor Conveyors

Outdoor Conveyors

Benefits of Cut-to-Size Plastic Sheets

Ready to Order Conveyor Wear Plastics?

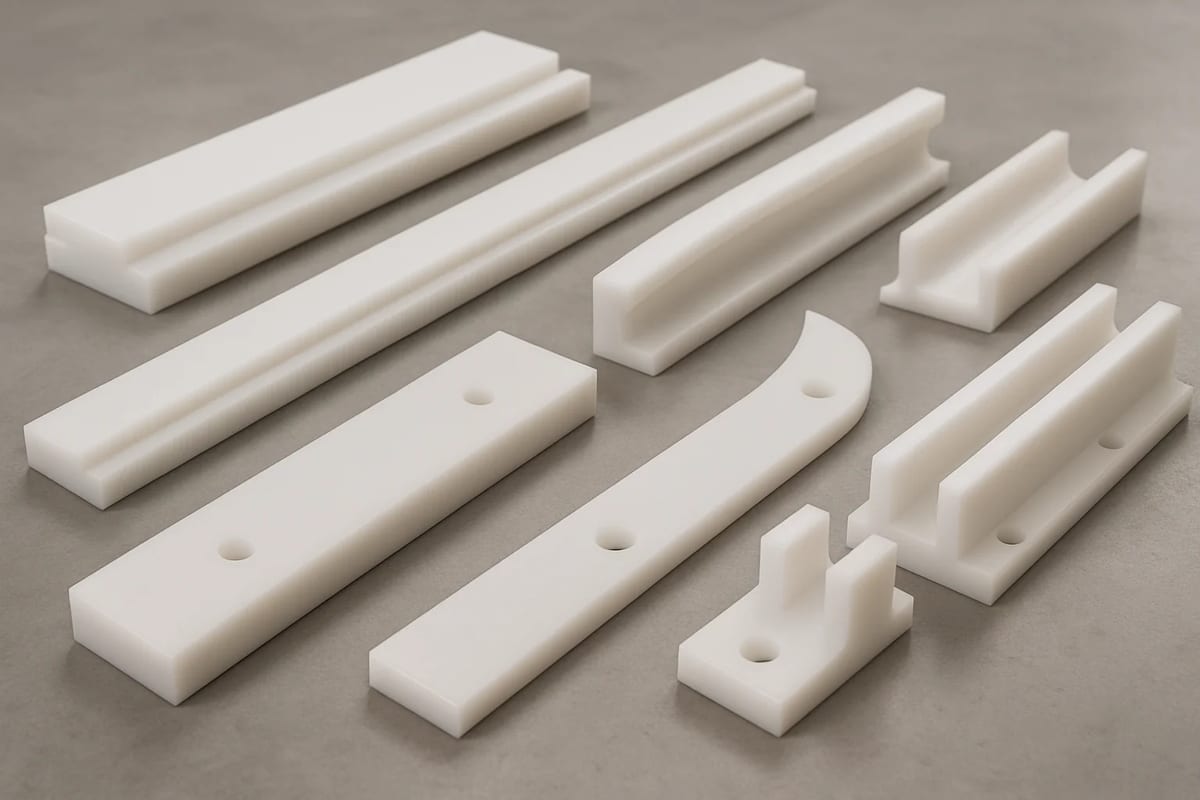

• Wear strips and wear rails
• Chain guides and tracks
• Slider beds and belt supports
• Side guides and product rails
• Impact pads and transfer liners
• Scrapers and belt cleaners
• Low friction – reduced power draw and belt wear
• Noise reduction – critical in packaging and food plants
• Corrosion resistance – ideal for washdown and outdoor use
• No lubrication required – cleaner, safer operation
• Easier replacement – lighter and simpler to machine
• Wear strips
• Chain guides
• Curved tracks
• Impact liners
• Extremely low friction
• Excellent abrasion resistance
• Self-lubricating
• Quiet under load
• Not structural
• Soft compared to engineering plastics
• Wear rails
• Side guides
• Light-duty liners
• Good wear resistance
• Lower cost than UHMWPE
• Easy to machine
• Shorter wear life than UHMWPE
• Not ideal for high-speed or high-load conveyors
• Chain tracks
• High-speed straight runs
• Tight tolerance components
• Very low friction
• High stiffness
• Excellent dimensional stability
• Higher cost
• Less impact resistance than UHMWPE
• Rollers
• Structural wear blocks
• High load capacity
• Tough and rigid
• Absorbs moisture
• Can squeak or bind without lubrication
• $343.80 – $1,265.40Price range: $343.80 through $1,265.40
  Select options
  This product has multiple variants. The options may be chosen on the product page
• $240.00 – $1,211.00Price range: $240.00 through $1,211.00
  Select options
  This product has multiple variants. The options may be chosen on the product page
• $271.32 – $9,821.18Price range: $271.32 through $9,821.18
  Select options
  This product has multiple variants. The options may be chosen on the product page
• $46.00 – $5,281.89Price range: $46.00 through $5,281.89
  Select options
  This product has multiple variants. The options may be chosen on the product page
• 6–10 mm – Side guides, light wear strips
• 12–15 mm – Standard wear rails and chain guides
• 20–25 mm – Slider beds, impact areas
• 30+ mm – Heavy-duty liners and transfer points
• UV resistance less critical
• Focus on wear rate and noise
• UHMWPE, HDPE, and acetal all suitable
• UV resistance is essential
• Temperature variation matters
• UV-stabilised UHMWPE or HDPE recommended
• Exact fit every time
• Reduced installation time
• Less material waste
• Faster maintenance turnarounds
• Food and beverage packaging lines
• Mining and bulk material conveyors
• Recycling facilities
• Warehousing and logistics systems
• Pharmaceutical production
• Identify sliding vs impact zones
• Choose UHMWPE for high wear, HDPE for lighter duty
• Select thickness based on load, not guesswork
• Order parts cut to size to avoid delays

Conveyor belts fail for one simple reason: wear. Friction, abrasion, impact, moisture, and contamination slowly destroy metal components and belts, driving up downtime and maintenance costs. That is why plastic wearable parts on conveyor belts are now standard across food processing, packaging, mining, recycling, and manufacturing lines.

This guide breaks down where plastic wear parts are used, which plastic materials actually perform, and how to select the right thickness and sheet type-with a practical focus on ordering cut-to-size plastic sheets for fast replacement.

Plastic wear components are installed anywhere a belt, chain, or product slides, rubs, or impacts a surface.

These parts are sacrificial by design: they wear out instead of the belt or conveyor frame.

Metal-on-belt contact creates heat, noise, and accelerated belt wear. Plastics solve these problems.

For most conveyor systems, plastic wear parts are cheaper over their lifecycle than steel or aluminium.

Choosing the wrong plastic costs money fast. Below is a practical comparison of the plastics actually used on conveyor belts.

Industry standard for wear

Used for:

Why it works:

Limitations:

Cost-effective wear solution

Used for:

Why it works:

Limitations:

Precision and low friction

Used for:

Why it works:

Limitations:

Strength-focused applications

Used for:

Why it works:

Limitations:

Bottom line:
If the part slides constantly or sits under a belt or chain, UHMWPE is usually worth the extra cost.

Thickness selection is not guesswork. It depends on load, span, and wear rate.

Too thin and the part wears through prematurely. Too thick and you waste money and space.

Ordering cut-to-size plastic sheets allows you to match thickness precisely to the application.

Plastic wear parts outperform metal outdoors due to corrosion resistance and reduced maintenance.

Buying full sheets and cutting in-house wastes time and material. Conveyor wear parts are dimension-critical.

With an online calculator, you can price parts instantly and order replacements before failures occur.

Plastic wearable parts are used daily in:

In each case, plastics extend belt life and reduce downtime.

If you are replacing or upgrading conveyor wear parts:

Plastic wear parts are consumables. The goal is predictable replacement-not failure.

Get exact pricing, exact sizing, and fast turnaround from an Australian supplier.

Use the cut-to-size calculator on perspexonline.com.au
Order UHMWPE or HDPE sheets cut to your exact dimensions
