Battery Box
Overview
Plastic materials are widely used for battery boxes because they provide chemical resistance, corrosion resistance, and electrical insulation. These properties are particularly important in battery systems where exposure to electrolyte fluids, moisture, or corrosive gases may occur.
Battery boxes are commonly used in:
Marine and boating battery installations
Recreational vehicles and mobile power systems
Industrial backup power systems
Solar energy storage installations
Telecommunications and UPS battery systems
Electric vehicle and equipment battery housings
Because battery systems vary significantly in size, configuration, and installation environment, battery boxes are often custom manufactured to match battery dimensions and system layouts.
Custom Manufactured to Your Drawings
Battery boxes are typically designed to fit specific battery types, mounting spaces, and electrical system layouts.
We manufacture battery box components based on:
CAD drawings or dimensional specifications
Customer sketches or installation measurements
Reference samples of existing battery housings
Prototype enclosures for new systems
Repeat production runs for equipment manufacturers
All components are fabricated in-house using plastic machining, forming, and welding processes. Features such as ventilation openings, cable entry points, and mounting brackets are produced according to the supplied specifications.
Because battery installations often require precise fitment within equipment or vehicles, most battery boxes are drawing-led custom fabrications rather than standardised products.

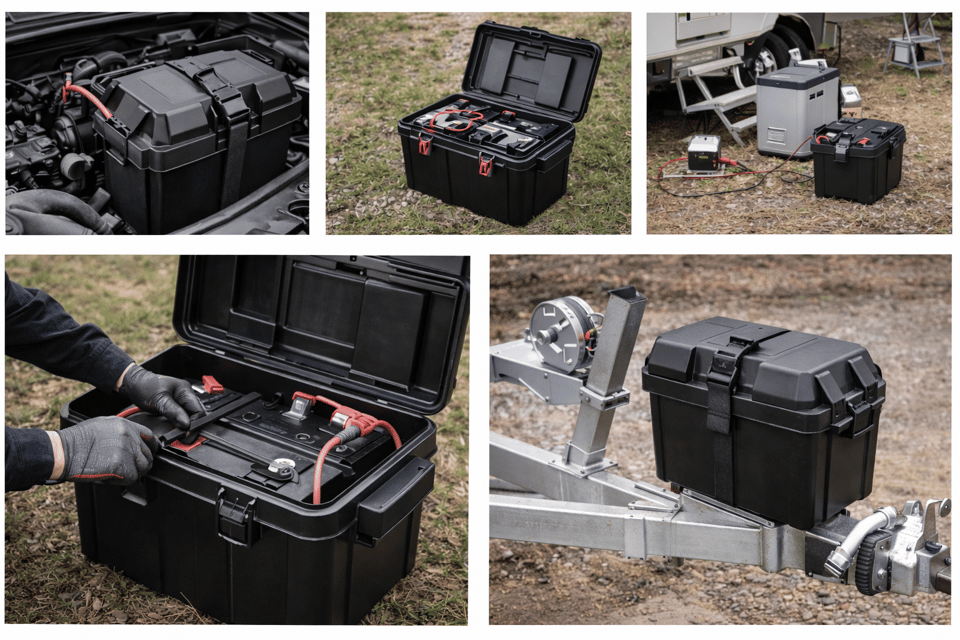

Typical Applications
Battery boxes are used in a variety of electrical and energy storage systems, including:
Marine battery containment boxes
Recreational vehicle battery housings
Solar energy battery storage enclosures
Backup power system battery boxes
Electric equipment battery containment
Industrial battery banks and UPS systems
Telecommunications power storage enclosures
Vehicle auxiliary battery housings
These enclosures help protect surrounding equipment while containing potential battery leaks.
Recommended Materials for Battery Box
PVC battery boxes provide excellent chemical resistance and electrical insulation, making them ideal for safely housing batteries in marine, automotive, and industrial applications.
Polypropylene battery boxes offer excellent chemical resistance and durability, making them well suited for safely containing batteries in automotive, marine, and industrial environments.
HDPE battery boxes provide strong impact resistance and excellent chemical durability, making them ideal for protecting batteries in demanding automotive, marine, and industrial applications.
Popular Battery Box
-
HDPE Sheet
Price range: $46.00 through $6,076.00 Select options This product has multiple variants. The options may be chosen on the product page -

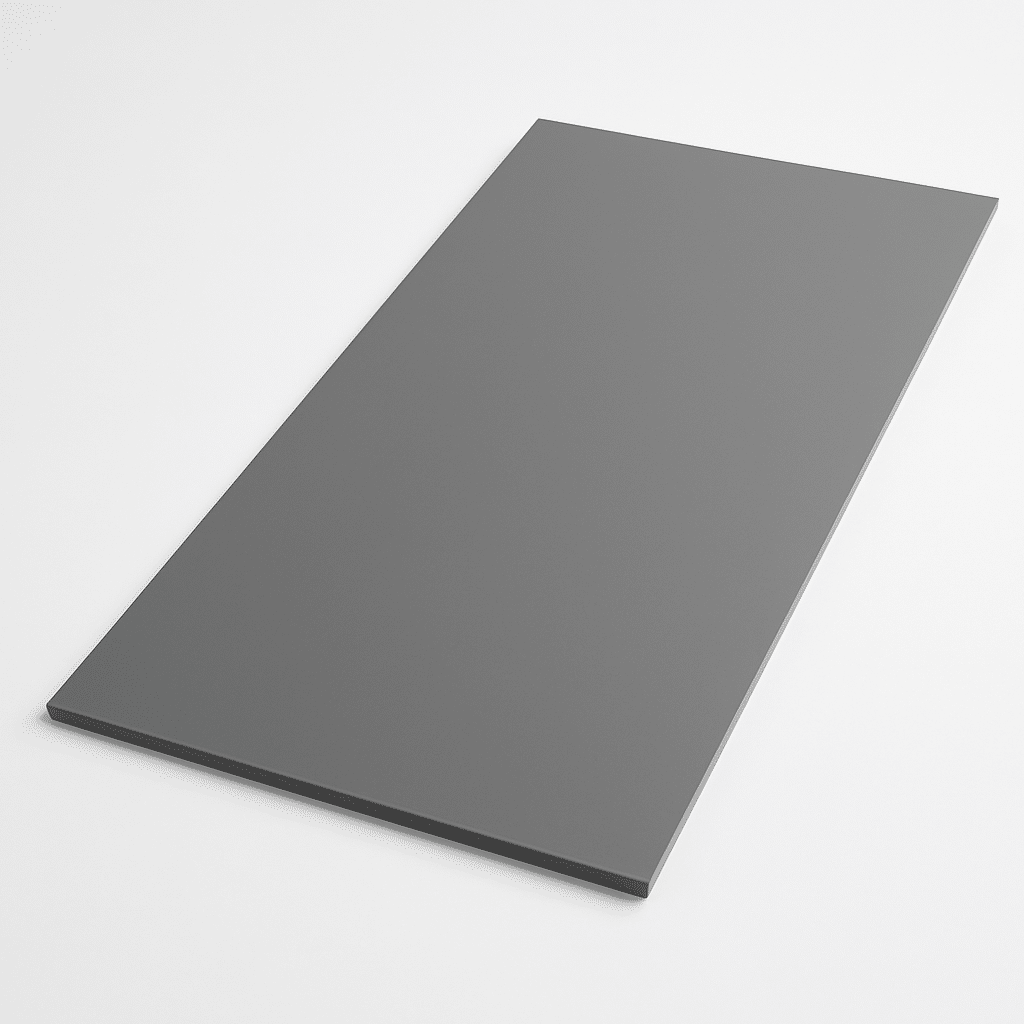

Polypropylene Sheet
Price range: $65.34 through $1,937.00 Select options This product has multiple variants. The options may be chosen on the product page -
Rigid PVC Sheet
Price range: $40.43 through $2,177.60 Select options This product has multiple variants. The options may be chosen on the product page
Key Performance Requirements
Mechanical
Battery boxes must support the weight of batteries and protect them from external damage.
Typical mechanical considerations include:
Structural strength to support battery weight
Secure mounting within equipment or vehicles
Resistance to cracking or deformation
Accurate dimensions for battery fitment
Durable lids or covers for enclosure protection
Environmental
Battery systems may be exposed to challenging environmental conditions.
Environmental considerations include:
Resistance to battery electrolyte chemicals
Moisture resistance in outdoor environments
Temperature stability in operating conditions
Resistance to corrosion and chemical exposure
Recommended Materials
PVC is commonly used for battery boxes where strong chemical resistance and rigidity are required.
Advantages:
Excellent resistance to battery acid and many chemicals
Rigid and durable for structural enclosures
Good electrical insulation properties
Limitations:
Lower impact resistance compared to HDPE and polypropylene
Can become brittle in very cold environments
HDPE (High-Density Polyethylene)
A widely used material for battery boxes due to its excellent chemical resistance and durability.
Advantages:
Resistant to battery acid and electrolyte exposure
Good impact resistance
Suitable for structural enclosures
Limitations:
Limited resistance to certain solvents
Often used where improved chemical resistance or temperature tolerance is required.
Advantages:
Strong resistance to battery electrolytes
Higher temperature tolerance than HDPE
Limitations:
Slightly lower impact resistance
Material Selection Summary
For most battery containment systems, HDPE is commonly used because it offers strong resistance to battery electrolytes and long-term durability.
Polypropylene may be selected where higher operating temperatures or enhanced chemical resistance are required.
PVC may be used in smaller enclosures or lower temperature environments.
Material selection should consider battery type, chemical exposure, and installation conditions.
Design & Installation Considerations
When designing battery boxes, several factors should be considered:
Battery size and weight
Ventilation requirements for gas release
Cable routing and electrical connections
Structural mounting within equipment or vehicles
Access for battery inspection and replacement
Resistance to electrolyte spills
Proper design ensures safe containment and reliable operation of the battery system.
Alternative Options:
All components used in this application are manufactured in-house using controlled, drawing-led production processes. We do not supply generic or off-the-shelf products. Each part is produced to specification to meet defined mechanical, environmental, and installation requirements.
Frequently Asked Questions
Common materials include HDPE, polypropylene, and PVC, depending on chemical exposure and installation conditions.
Yes. Most battery boxes are custom fabricated to match battery dimensions and installation requirements.
Yes. Materials such as HDPE and polypropylene offer strong resistance to battery electrolyte exposure.
Yes. Battery boxes can be designed with ventilation slots or openings to allow safe gas release.
Yes. CNC machining allows cable openings and mounting holes to be included during fabrication.
Yes. Plastic enclosures can be manufactured using materials suitable for outdoor exposure.
