Technical Specifications
| Material Type | Acetal Copolymer (POM-C) |
| Standard | ISO 1874, ASTM D6778 |
| Density | ~1.41 g/cm³ |
| Tensile Strength | ~65–70 MPa |
| Tensile Modulus | ~2.8–3.0 GPa |
| Elongation at Break | ~20–30% |
| Flexural Strength | ~90–100 MPa |
| Melting Point | ~165–175 °C |
| Continuous Service Temp | −40 °C to +100 °C |
| Short-Term Temp Limit | ~140 °C |
| Coefficient of Friction | ~0.2–0.35 |
| Electrical Insulation | Excellent |
| Chemical Resistance | Excellent to fuels, oils, solvents; poor to strong acids/alkalis |
| Typical Colour | Natural (white), black |
Certifications & Downloads

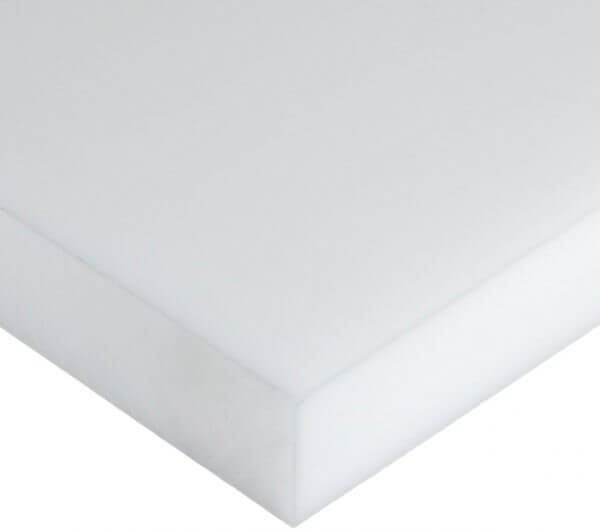

Acetal Sheet

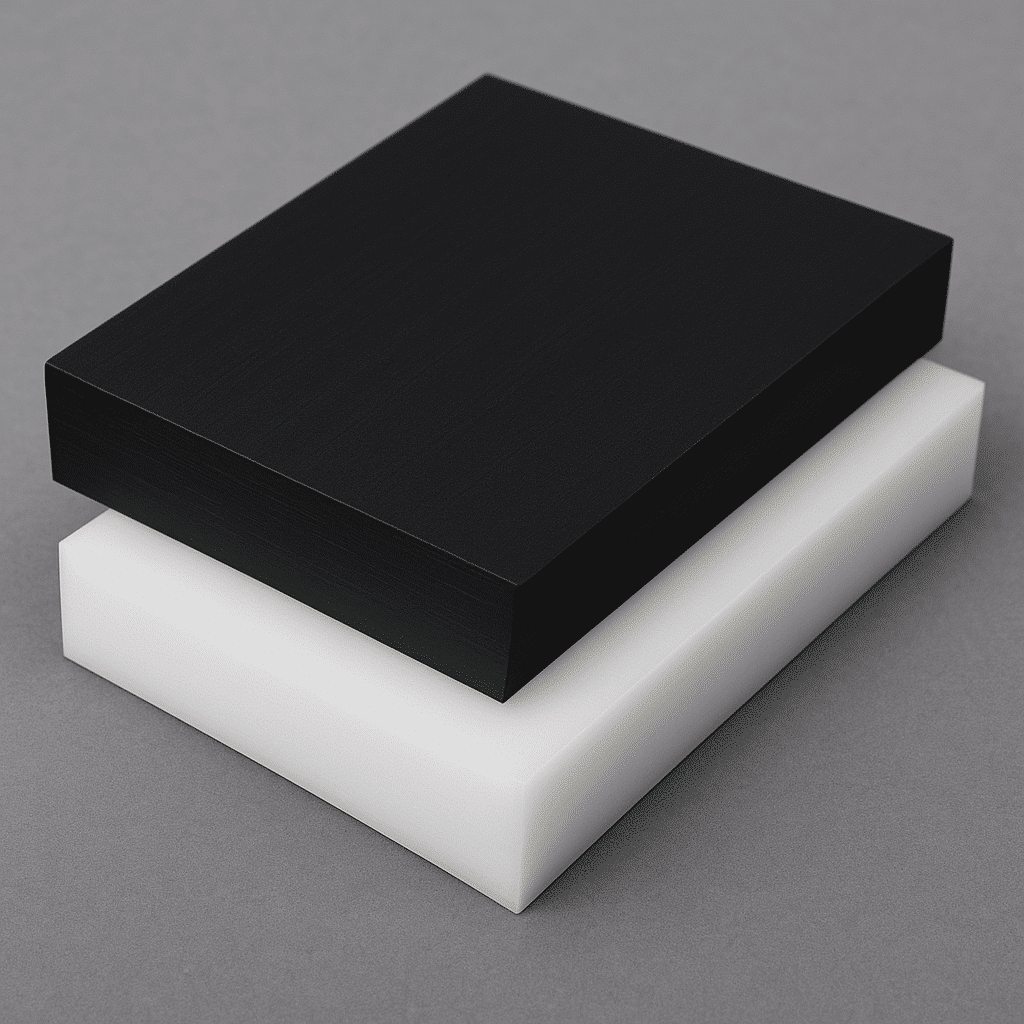

Acetal (POM-C) Sheet – Black & White
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose Acetal Sheet?
Key Features
Applications
Polymer Types
Standard Colours
Specialty Grades
Options
Can’t find the exact size?
- Excellent impact resistance and durability.
- Superior dimensional stability and surface hardness.
- High dielectric strength and resistance to solvents.
- Minimal moisture absorption, ensuring consistent performance.
- Suitable for use in high-temperature water applications when using copolymer grades.
- Homopolymer: Delrin®
- Copolymer: Celcon® / Hostaform®
- White
- Black (UV-stabilised)
- We will cut any size you need. Request a custom quote!
- Get a quick quote using our Online Pricing Calculator 🧮
- C.L.: Chemically lubricated for smoother performance.
- A.F.: PTFE ( Teflon ®) filled for enhanced wear resistance.
- G.F.: Glass-filled (up to 30%) for improved strength.
- E.L.: Electrically conductive for specific applications.
- S.D.: Static dissipative for handling sensitive electronics.

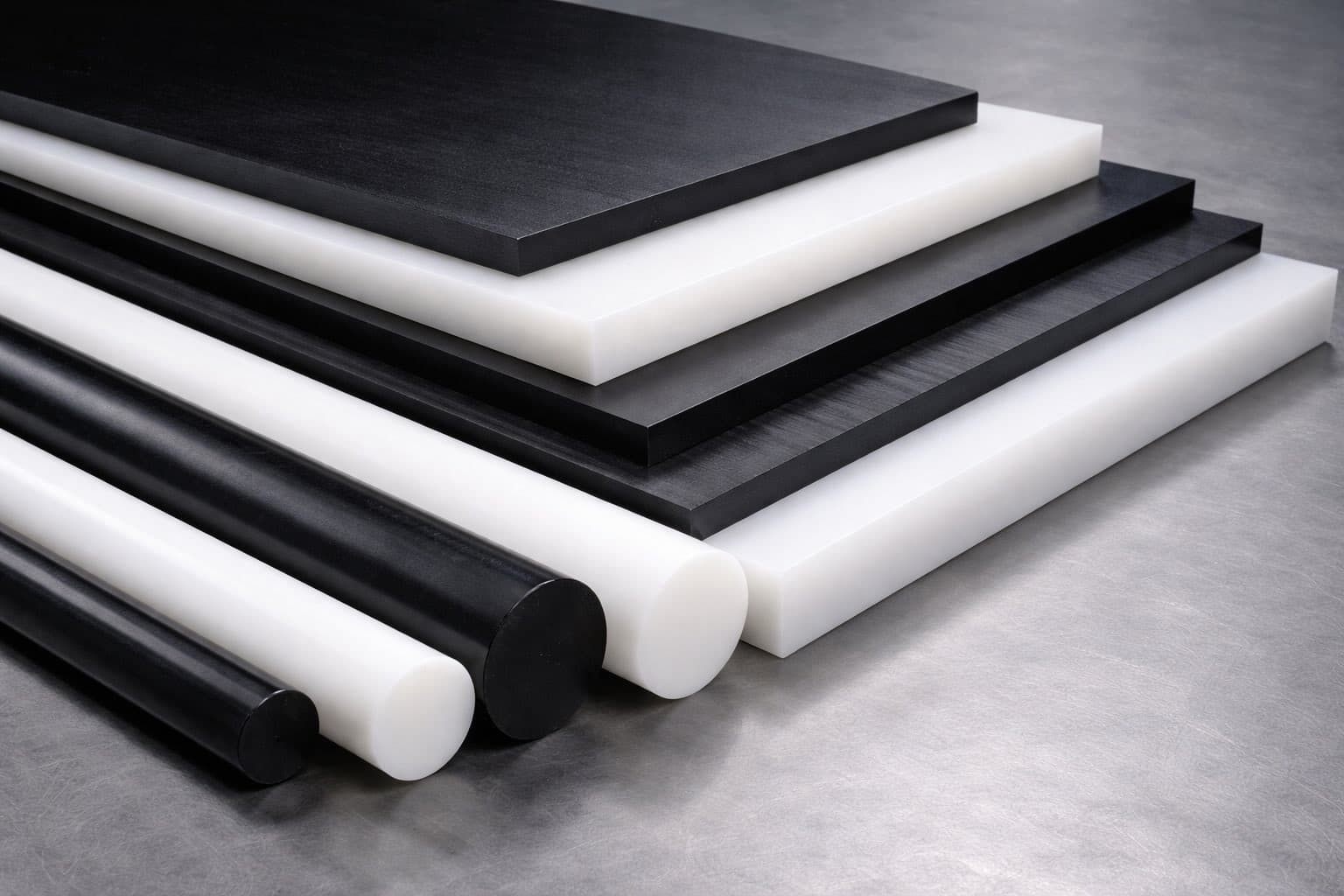

Acetal (POM-C) Sheet are versatile polymers known for their excellent impact resistance, dimensional stability, and high mechanical strength. They naturally offer lubricity and an exceptionally hard surface. With low moisture absorption, their strength properties remain unaffected in various environments. Acetals also feature high dielectric strength and resistance to many solvents, making them ideal for diverse applications. Their wide working temperature range of -45°C to +100°C further enhances their usability.

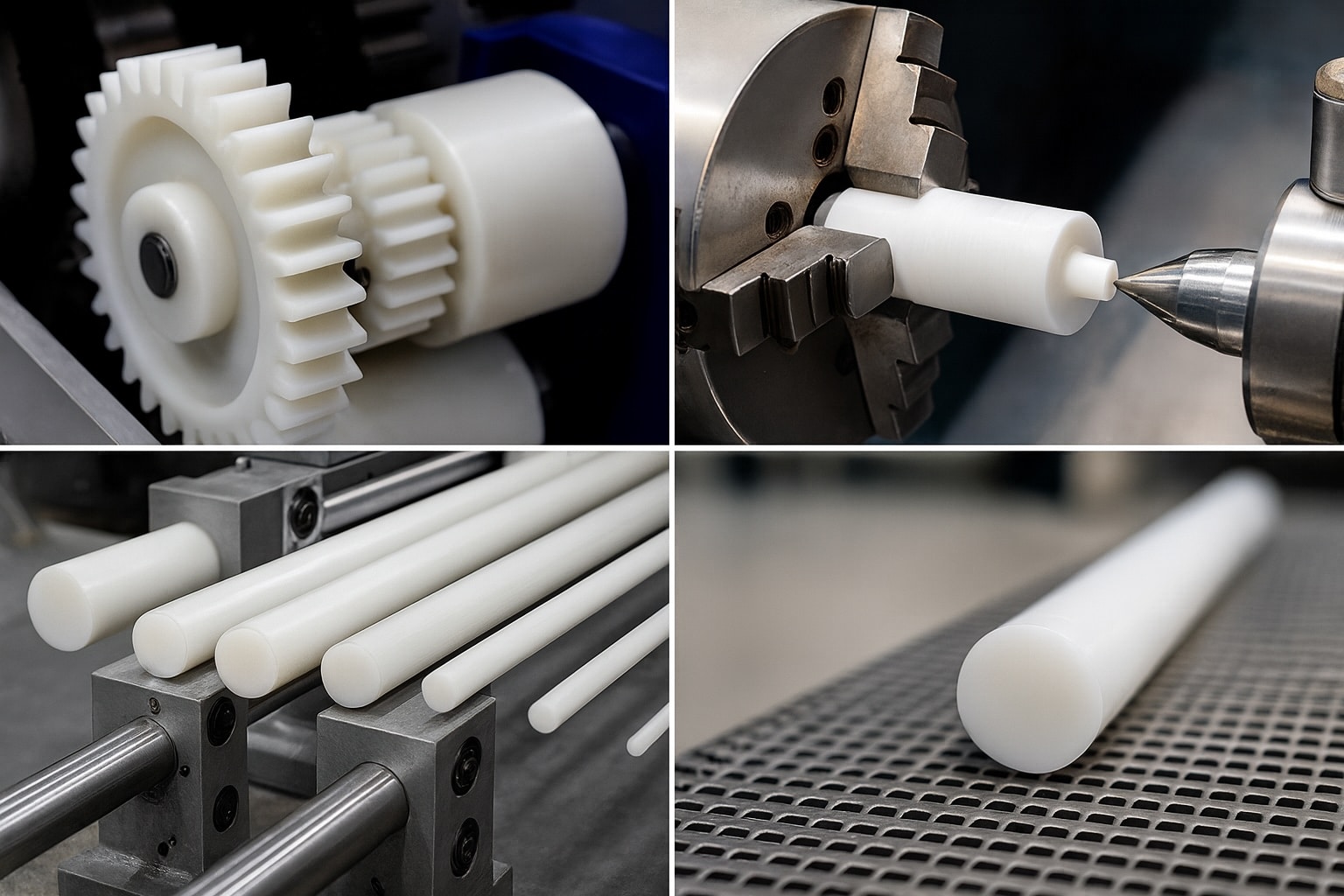

Acetals are widely used in the food industry (though not all grades are F.D.A.-approved) and for making components like bearings, gears, bushings, and wear-resistant parts.
Custom-coloured rods are available upon request, tailored to your specifications.
Request a custom colour.
As specialists in plastic, we also offer Fabrication and manufacturing solutions. LET'S TALK!
Ready to order your Acetal Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Material Type | Acetal Copolymer (POM-C) |
| Standard | ISO 1874, ASTM D6778 |
| Density | ~1.41 g/cm³ |
| Tensile Strength | ~65–70 MPa |
| Tensile Modulus | ~2.8–3.0 GPa |
| Elongation at Break | ~20–30% |
| Flexural Strength | ~90–100 MPa |
| Melting Point | ~165–175 °C |
| Continuous Service Temp | −40 °C to +100 °C |
| Short-Term Temp Limit | ~140 °C |
| Coefficient of Friction | ~0.2–0.35 |
| Electrical Insulation | Excellent |
| Chemical Resistance | Excellent to fuels, oils, solvents; poor to strong acids/alkalis |
| Typical Colour | Natural (white), black |
Certifications & Downloads
Frequently Asked Questions
What is acetal sheet (POM-C) and what is it used for?
Acetal sheet, also known as POM-C, is an engineering plastic sheet used for precision machined components. Common uses include wear pads, guide rails, machine parts, gears, and sliding components. It offers low friction, good strength, and dimensional stability, making it suitable for industrial and mechanical applications.
What is the difference between black and white acetal sheet?

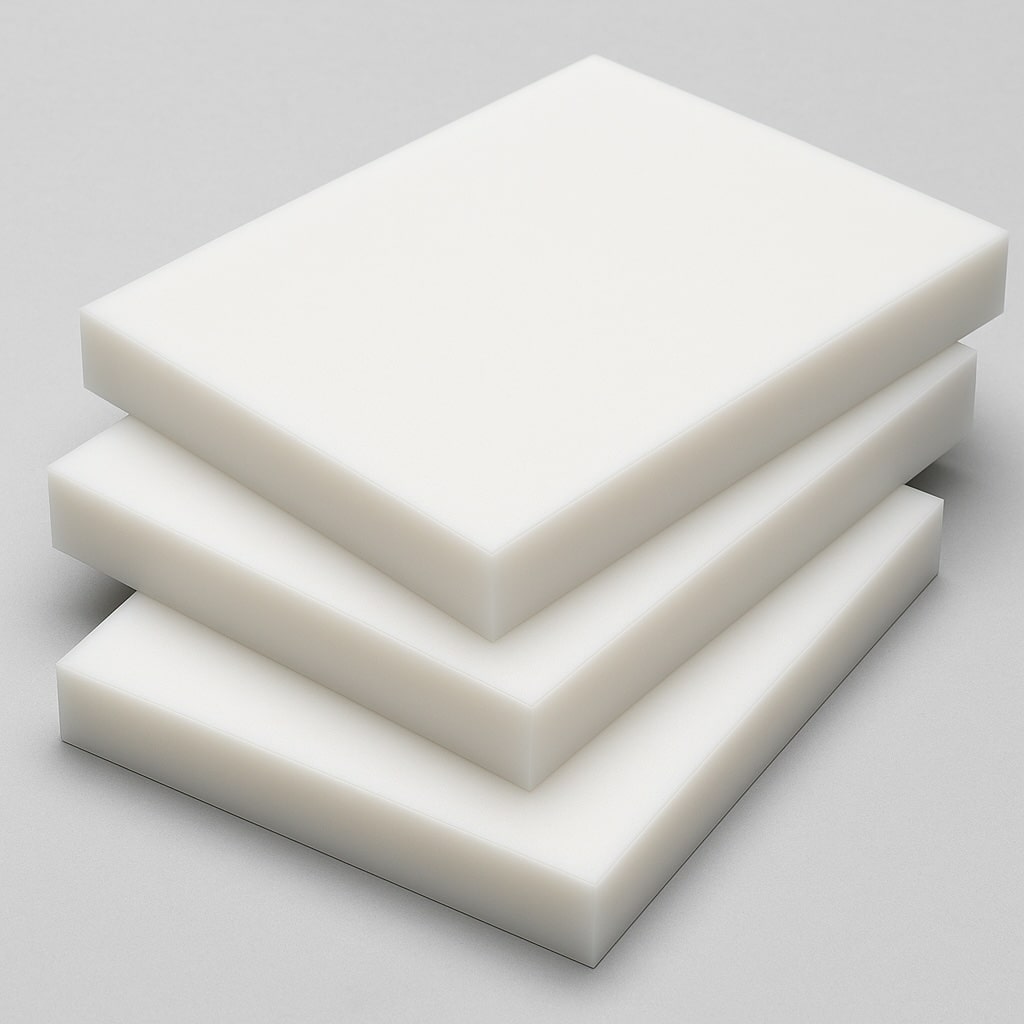

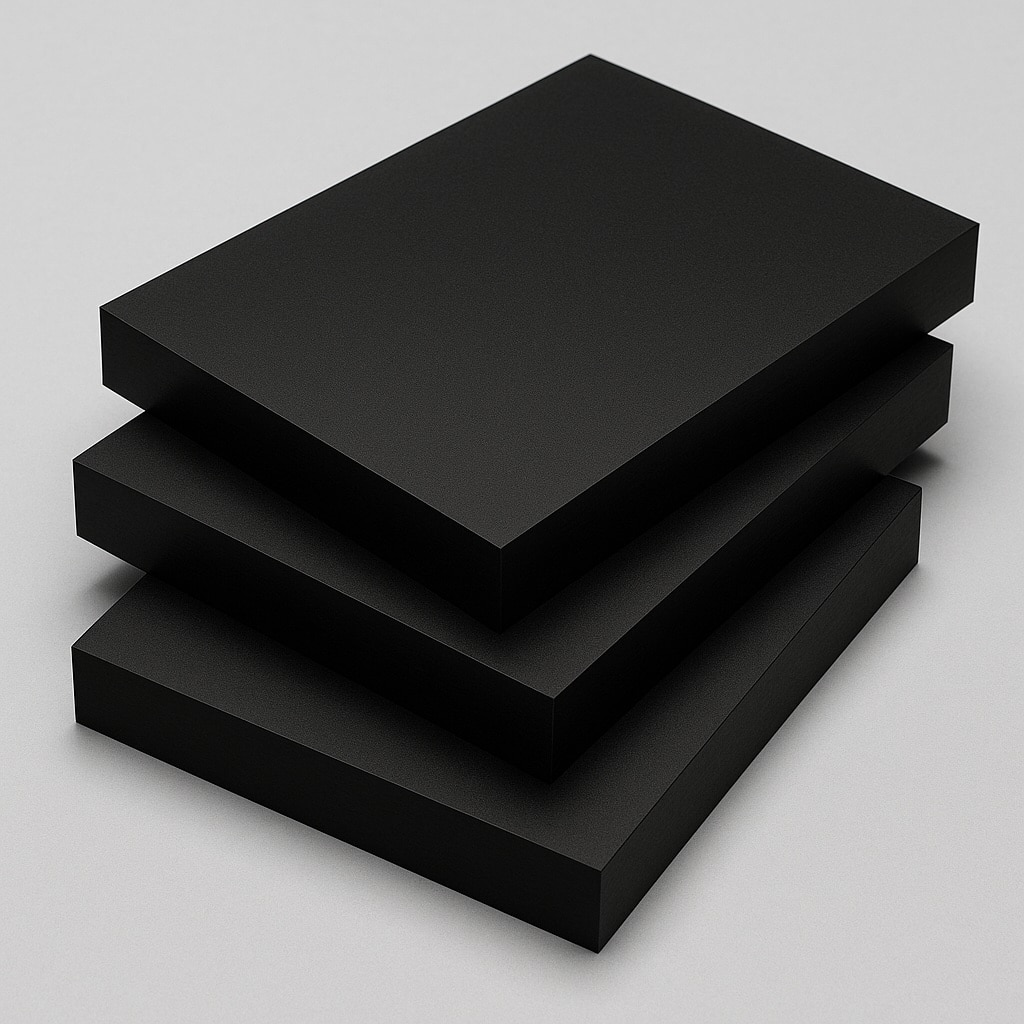

Black and white POM-C acetal sheets have similar mechanical properties. White acetal is commonly used for general engineering and food-related applications where visual cleanliness matters. Black acetal often includes carbon additives that improve UV resistance and make it better suited for outdoor or exposed environments.
What thicknesses and sheet sizes are available in acetal sheet?
Acetal sheet is typically available in a wide range of thicknesses, from thin precision sheets to heavy-duty engineering grades. Standard sheet sizes are commonly supplied, with availability depending on thickness and colour. Sheets can usually be cut to size to suit machining or fabrication requirements.
Is POM-C acetal sheet easy to machine?
Yes. Acetal sheet machines cleanly using standard metalworking tools. It can be milled, drilled, tapped, and CNC machined with good dimensional accuracy and surface finish. POM-C produces minimal burrs and is suitable for tight-tolerance components used in mechanical and wear applications.
How durable is acetal sheet in industrial use?
POM-C acetal sheet is highly durable in wear and sliding applications. It resists fatigue, maintains stiffness over time, and has low moisture absorption, helping parts retain their shape. It is not designed for high-temperature structural use and should be operated within recommended temperature limits.
Is POM-C acetal sheet chemically and moisture resistant?
POM-C offers good resistance to fuels, oils, greases, and many common chemicals. It has very low moisture absorption, which helps maintain dimensional stability. It is not suitable for strong acids, oxidising agents, or continuous exposure to high temperatures or direct UV without protection.
Is acetal sheet the same as Ertacetal or Sustarin?

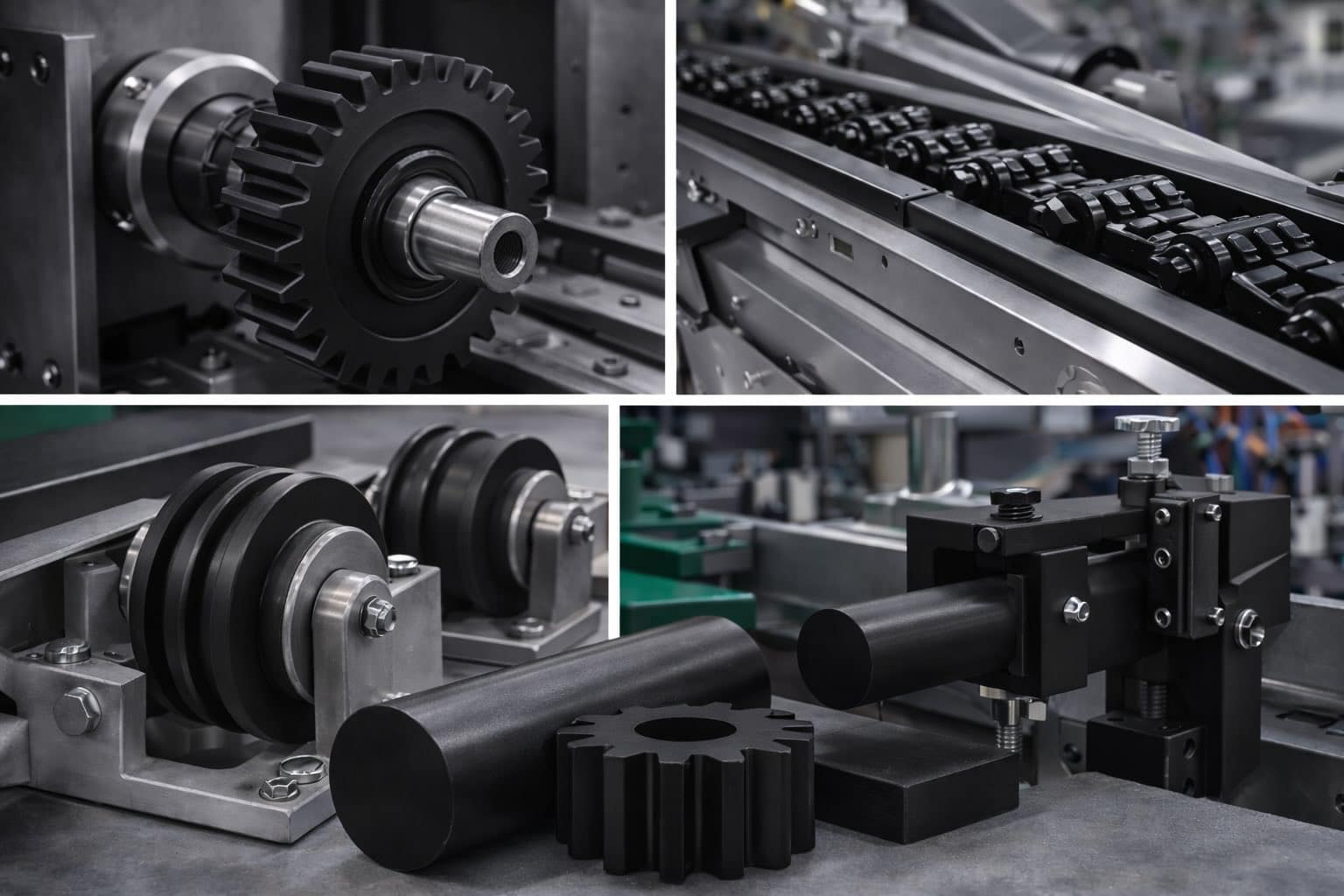

What you can make with Acetal Sheet
Bearings & Rollers
Turned nylon, acetal, and UHMWPE bearings and guide rollers.
Plastic Wear Strips
Machined UHMWPE and nylon strips for chain guides and slide tracks.
Medical Components
Precision-turned PTFE, PEEK, and nylon parts for medical devices.
Nylon Washers, Spacers & Custom Small Parts
Nylon washers, plastic spacers, shoulder washers, and PTFE washers in standard metric sizes or machined to your spec. From one-off prototypes to production quantities, delivered Australia-wide.
Engineering Plastic Trade Names & Equivalents
Cross-reference guide to engineering plastic trade names. Ertalon, Sustamid, Nylatron, Ertacetal, Sustarin, Polystone, Tivar, Ertalyte, and Simona matched to the nylon, acetal, UHMWPE, PET, and PVC we supply.
Conveyor Components
Acetal sprockets, chain guides, and tensioner components.
Bus & Coach Parts
Machined acetal fittings, pulleys, and bushings for transit.
Electrical Enclosures
Insulating acetal mounts, standoffs, and structural components.
