Technical Specifications
| Polymer Type | Polyethylene Terephthalate (PET-P / Ertalyte) |
| Density | 1.38–1.40 g/cm³ |
| Tensile Strength | ~80 MPa |
| Tensile Modulus | ~3.1 GPa |
| Elongation at Break | ~15% |
| Flexural Strength | ~115 MPa |
| Continuous Service Temp | -20 °C to +100 °C |
| Melting Point | ~258 °C |
| Water Absorption (24 hrs) | ~0.1% |
| Coefficient of Friction (dry) | ~0.2–0.3 |
| Chemical Resistance | Excellent – resists fuels, oils, weak acids |
| Electrical Insulation | Excellent |
| Food Approved | FDA / EU 10/2011 compliant grades |

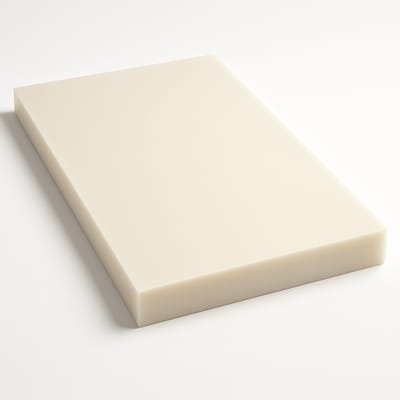

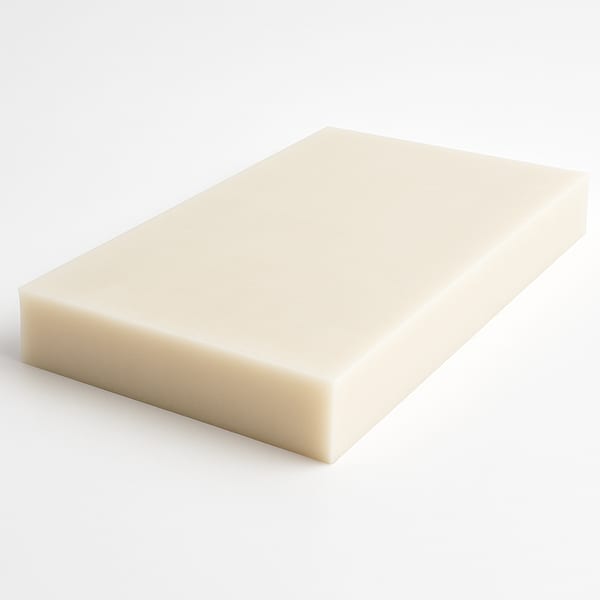

PETP Sheet
PETP (Polyethylene Terephthalate Polyester) sheet is a strong, rigid engineering plastic with excellent wear resistance, low friction, and good dimensional stability. It machines cleanly and…
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose PETP Sheet?
Our PETP Sheets (Polyethylene Terephthalate Polyester) deliver outstanding strength, rigidity, and dimensional stability for demanding industrial and mechanical applications. With excellent wear resistance and low moisture absorption, PETP is ideal for precision- machined components and structural parts.
Key Features:
✅ High Mechanical Strength & Stiffness – Suitable for load-bearing and structural applications
✅ Excellent Dimensional Stability – Maintains shape and tolerance under stress
✅ Low Friction & Wear Resistance – Ideal for sliding and wear components
✅ Good Chemical Resistance – Withstands oils, greases, and cleaning agents
✅ Low Moisture Absorption – Performs consistently even in humid environments
✅ FDA Approved Grades Available – Suitable for direct food contact
Typical Applications:
Precision gears, bearings, and bushings
Conveyor and machine parts
Insulators and electrical components
Food processing equipment parts
Wear strips and sliding plates
Technical Specifications:
Operating Temp Range: -20°C to +115°C
Density: ~1.38 g/cm³
Colour: Natural (white), black, or blue (depending on grade)
Form: Available in sheet and rod form
Available Sizes: We offer PETP sheets in a range of thicknesses and can custom cut to your required dimensions.
Ready to order your PETP Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Polymer Type | Polyethylene Terephthalate (PET-P / Ertalyte) |
| Density | 1.38–1.40 g/cm³ |
| Tensile Strength | ~80 MPa |
| Tensile Modulus | ~3.1 GPa |
| Elongation at Break | ~15% |
| Flexural Strength | ~115 MPa |
| Continuous Service Temp | -20 °C to +100 °C |
| Melting Point | ~258 °C |
| Water Absorption (24 hrs) | ~0.1% |
| Coefficient of Friction (dry) | ~0.2–0.3 |
| Chemical Resistance | Excellent – resists fuels, oils, weak acids |
| Electrical Insulation | Excellent |
| Food Approved | FDA / EU 10/2011 compliant grades |
Frequently Asked Questions
What is PETP sheet used for?
Is PETP sheet equivalent to Ertalyte?
Can you cut or machine PETP sheet to size?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your PETP Sheet to spec.
