Technical Specifications
| Material Type | Ultra High Molecular Weight Polyethylene (UHMWPE) |
| Density | ~0.93 g/cm³ |
| Molecular Weight | 3 – 6 million g/mol |
| Water Absorption | < 0.01% |
| Tensile Strength | 20 – 25 MPa |
| Tensile Modulus | 600 – 1,000 MPa |
| Impact Resistance | Exceptional (virtually unbreakable) |
| Abrasion Resistance | Excellent (superior to HDPE) |
| Wear Resistance | Outstanding |
| Coefficient of Friction | Very low |
| Operating Temperature Range | -200°C to +80°C |
| Melting Point | ~135°C |
| Chemical Resistance | Excellent (acids, alkalis, solvents) |
Certifications & Downloads

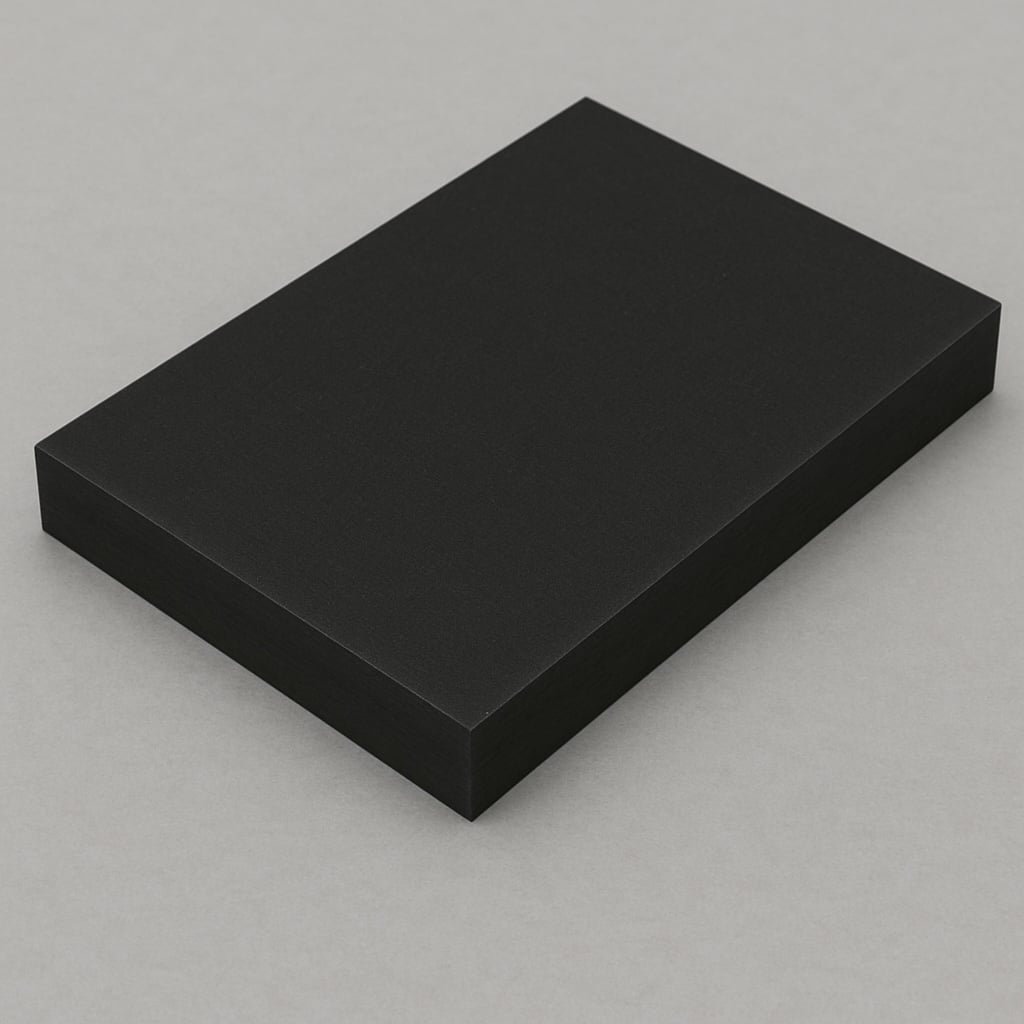

UHMWPE Sheet

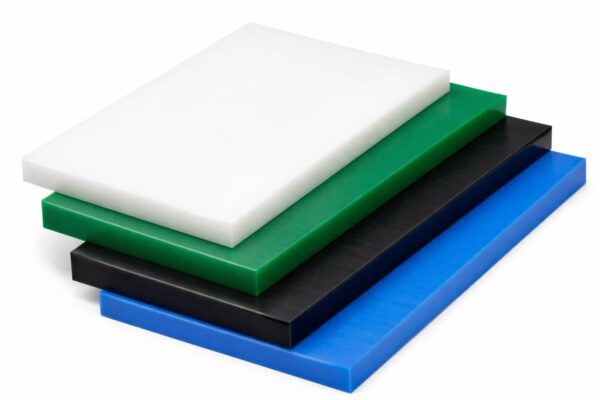

UHMWPE Sheets – Black, Green, White & Blue (3mm to 100mm)Our UHMWPE (Ultra High Molecular Weight Polyethylene) sheets are available in a wide range of thicknesses from 3mm up to 100mm and come in…
Optional finishing services - toggle any you need.
Optional. Add drilled holes to your piece.
Acrylic only - optical-grade edge finish
Pick which edges to polish.
Flame polish is only available on acrylic.
Manual router - per-corner price scales with thickness
Rounded or 45 degree bevel - per-metre rate x thickness
Why choose UHMWPE Sheet?

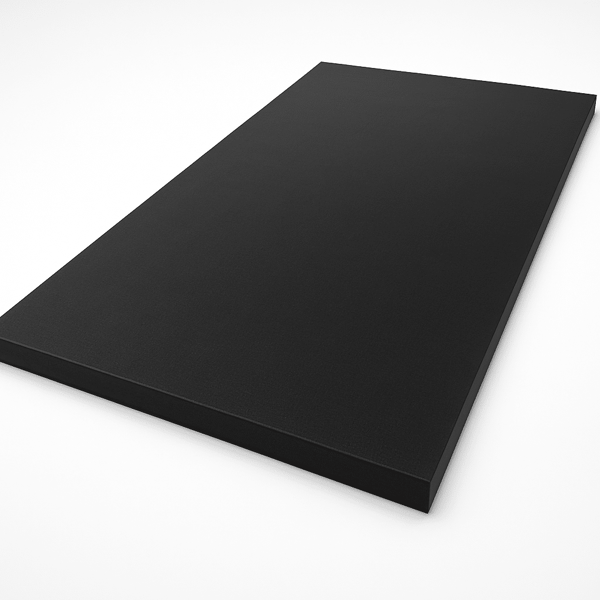

UHMWPE Sheet – Ultra-Tough, Low-Friction Plastic
UHMWPE (Ultra High Molecular Weight Polyethylene) Sheet is an extremely durable engineering plastic known for its outstanding impact strength, abrasion resistance, and low coefficient of friction. It performs exceptionally well in high-wear applications where sliding, impact, or chemical exposure is a factor.
Commonly used in chute liners, wear strips , conveyor systems, and marine or agricultural components, UHMWPE offers long service life even in the harshest environments.
Key Features:
Superior abrasion and impact resistance
Extremely low friction – self-lubricating
Excellent chemical and corrosion resistance
Low moisture absorption
Food-grade options available (FDA compliant)
Available in various thicknesses and sheet sizes, including custom cut-to-size options.
Ready to order your UHMWPE Sheet?
Cut to size, precision finished and dispatched Australia-wide. Not sure which material suits your job? We'll help you choose the right one.
Related Products
Technical Specifications
| Material Type | Ultra High Molecular Weight Polyethylene (UHMWPE) |
| Density | ~0.93 g/cm³ |
| Molecular Weight | 3 – 6 million g/mol |
| Water Absorption | < 0.01% |
| Tensile Strength | 20 – 25 MPa |
| Tensile Modulus | 600 – 1,000 MPa |
| Impact Resistance | Exceptional (virtually unbreakable) |
| Abrasion Resistance | Excellent (superior to HDPE) |
| Wear Resistance | Outstanding |
| Coefficient of Friction | Very low |
| Operating Temperature Range | -200°C to +80°C |
| Melting Point | ~135°C |
| Chemical Resistance | Excellent (acids, alkalis, solvents) |
Certifications & Downloads
Frequently Asked Questions
What is UHMWPE sheet and what is it used for?
UHMWPE sheet is a high-performance plastic made from ultra-high molecular weight polyethylene. It’s commonly used for wear strips, chute liners, chain guides, conveyor components, and impact surfaces where low friction, abrasion resistance, and toughness are required.
What are the key properties of UHMWPE sheet?
What thicknesses and sheet sizes are available for UHMWPE?
Is UHMWPE sheet easy to machine and fabricate?
Can UHMWPE sheet be used outdoors?
How does UHMWPE sheet compare to HDPE sheet?
What temperature range can UHMWPE sheet handle?
Is UHMWPE sheet equivalent to Polystone or Tivar?
Need this custom cut or fabricated?
Send us your drawing (DXF, DWG, PDF, EPS, STEP) and we'll quote your UHMWPE Sheet to spec.
